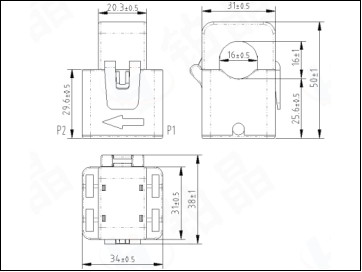

CTK160402 products generally use small current signal output or voltage signal output to maximize product accuracy and reduce hardware costs. When outputting current signals, the secondary circuit of the transformer needs to be connected before installation to avoid the risk of electric shock due to high voltage generated by the open secondary circuit during installation. After installation, the transformer needs to be well fixed on the measured wire with nylon tie.

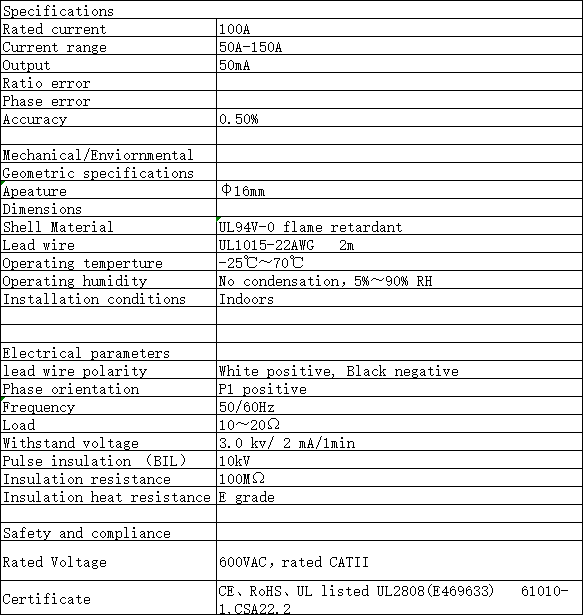

Features:
●Accuracy level: 0.5%, 1%
●Current input range: 50A~150A
●Output options: 50mA or 0.333V
●CE, RoHS, UL listed UL2808

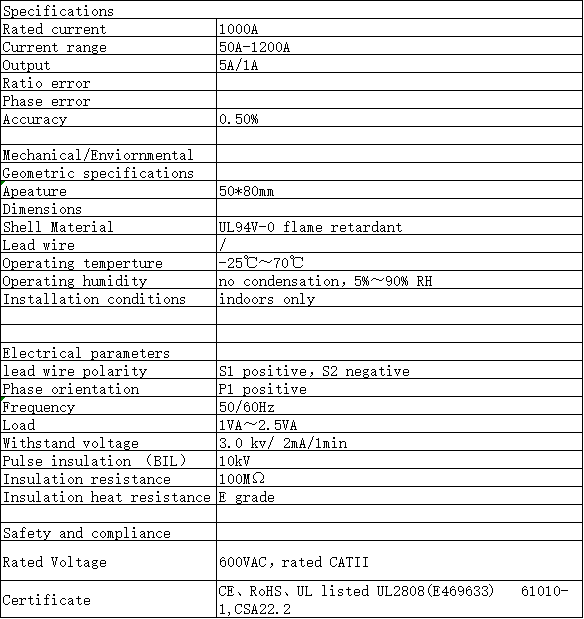

This series of products can measure cables with a current range of 400A-1600A. According to the requirements, the accuracy can be 0.5, 1.0, etc., and the secondary output signal is a standard current of 5A/1A.

Features:
●Accuracy level: 0.5%, 1%
●Current input range: 400A~1600A
●Output options: 5A or 1A
●CE, RoHS, UL listed UL2808

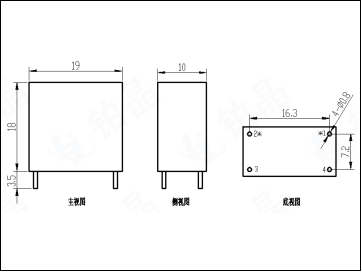

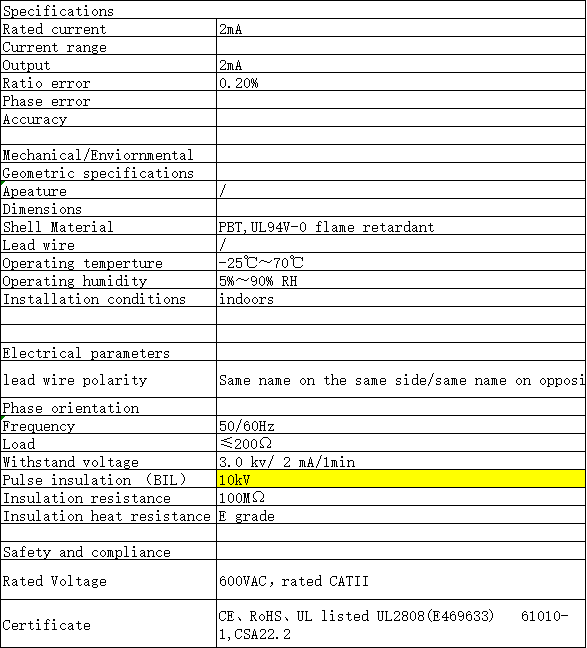

The application principle of the current input voltage transformer is: first, the primary voltage to be converted is converted into a 1-6mA current through a current limiting resistor and input into the primary end of the voltage transformer. The primary and secondary turns of the voltage transformer are equal. A resistor is connected in parallel to the secondary of the transformer, and then the weak current of the secondary is converted into a voltage signal output. The current type voltage transformer can reduce the size of the device as much as possible, which is conducive to the miniaturization of the instrument. However, the current type voltage transformer requires a current limiting resistor, and its stability directly affects the conversion accuracy of the transformer; especially when the measured voltage level is high, it is more important to pay attention to the dissipated power of the current limiting resistor must meet the design requirements, and pay attention to its heat dissipation conditions. At the same time, the secondary load capacity of the transformer is poor, and the general output voltage is not greater than 1V. Excessive output voltage will reduce the dynamic range and linear accuracy of the transformer. In terms of secondary signal processing, a smaller load resistor can be used in combination with a precision rectifier amplifier circuit. It can not only ensure the conversion accuracy, but also ensure the secondary sampling accuracy, but also reduce the dissipated power of the current limiting resistor, which is conducive to reducing costs and improving the reliability of the circuit.

Features:
●Accuracy level: 0.1%, 0.2%
●Current input range: 1mA, 2mA
●Output options: 1mA, 2mA
●CE, RoHS, UL listed UL2808

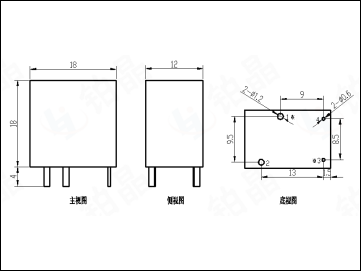

This series of products are small in size, high in precision, small in phase shift, easy to use, can accurately transform and isolate current signals, and are mainly used in current, power and electric energy detection equipment or electric measuring instruments; This series of products mainly adopts pin input for primary and symmetrical PCB direct welding mode for secondary output, which is easy and quick to install and not prone to errors. At the same time, the product adopts flame-retardant PBT material with excellent insulation and flame-retardant properties, and the flame-retardant grade reaches UL 94-V0 level; epoxy resin encapsulation process, waterproof, moisture-proof and heat dissipation performance are excellent, and can be used in harsh environments.

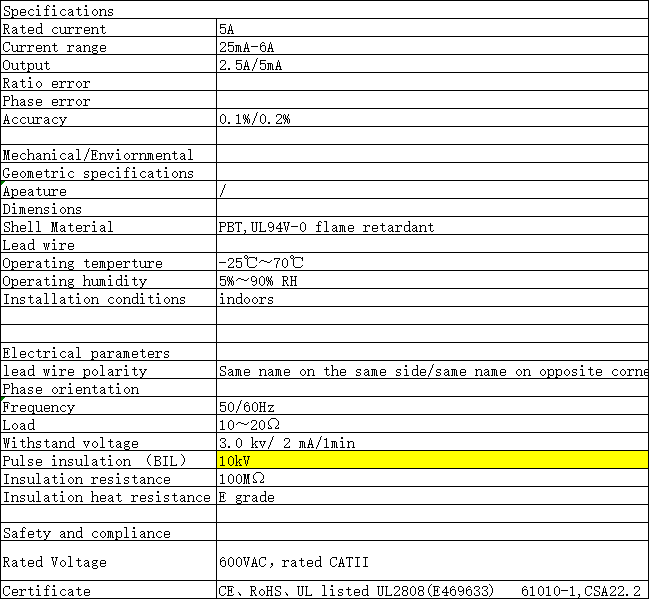

Features:
●Accuracy level: 0.1%, 0.2%
●Current input range: 1A~5A
●Output options: 2mA or 5mA
●CE, RoHS, UL listed UL2808

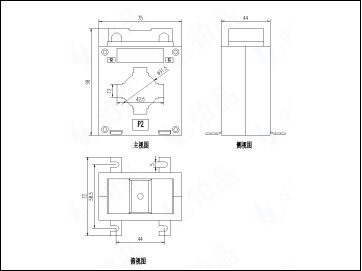

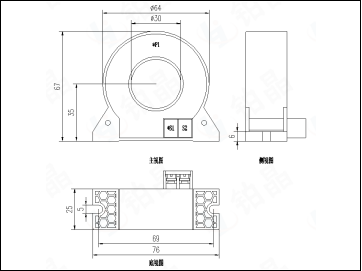

This series of products is basically made into a standard through-hole diameter based on the diameter of the cable and the width of the copper bar, and it is very good in terms of product substitutability. Many manufacturers on the market produce similar models, and users are more flexible in choice.

" Features:
● Accuracy level: 0.5%, 1%
● Current input range: 100A~600A
● Output option: 5A
● CE, RoHS, UL listed UL2808

The product color can be produced according to customer specifications to meet different color schemes.

Features:
●Accuracy level: 0.5%, 1%, 3%
●Current input range: 0A~160A
●Output options: 0.5mA—10mA
●CE, RoHS, UL listed UL2808

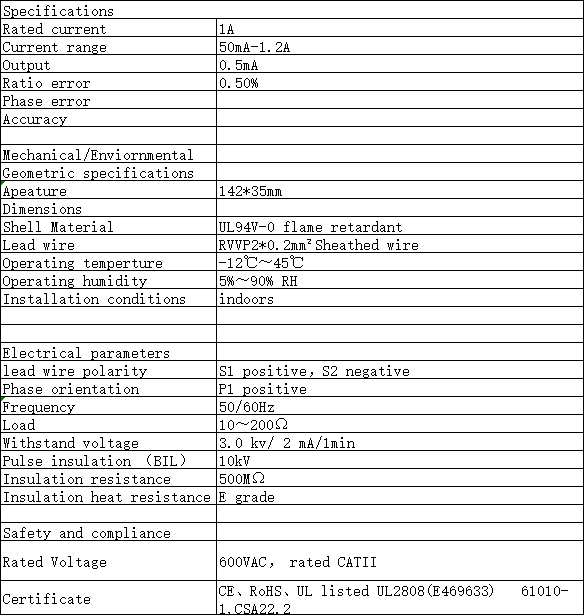

The CT511103 rectangular through-type current transformer has a through-hole size of 142*35mm. The shell is made of environmentally friendly flame-retardant ABS engineering plastics or flame-retardant PC/ABS alloy materials. It uses high-magnetic nanocrystalline soft magnetic materials, combined with reasonable structural design and rigorous production technology. It has the characteristics of high precision, good balance characteristics, small size, high insulation strength, strong impact resistance, and easy installation. It can work reliably and stably in harsh environments.
The product is produced by epoxy resin full casting process, which completely seals the secondary winding and shielding structure, has excellent waterproof and moisture-proof capabilities, and uses direct wire output or waterproof plug wiring. It can work reliably in humid environments. According to requirements, special materials can also work reliably outdoors.

The product color can be produced according to customer specifications to meet different color schemes.

Features:
●Accuracy level: 0.5%, 1%, 3%
●Current input range: 0A～250A
●Output options: 0.5mA～10mA
●CE, RoHS, UL listed UL2808

Rich in specifications and varieties, with a wide range of applicable currents
Flexible signal processing: combined or independent current and voltage outputs;
High overload multiples: up to 8/12/20 times.
High accuracy: the accuracy of the normal monitoring range can reach above 0.2 level.

Various output modes, terminals/wires/plugs;

Three-phase combined structure, easy construction and small space occupation;

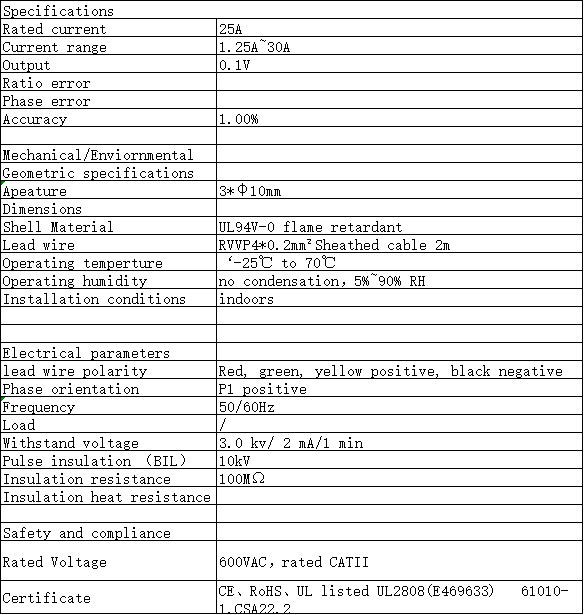

Features:
● Accuracy level: 0.2%, 0.5%, 1%
● Current input range: 5A~25A
● Output options: 2.5mA, 10mA, 0.1V
● CE, RoHS, UL listed UL2808
